Name: Industrial Cube Ice Production Plant with 5 Ton Capacity and Automatic Operation
Brand: Focusun
Price: 23 USD

Wholesale Industrial Cube Ice Production Plant with 5 Ton Capacity and Automatic Operation from china suppliers

Applicable Industries : Hotels, Food & Beverage Factory, Farms, Restaurant, Energy & Mining, Advertising Company

Condition : New

Place of Origin : Shanghai, China

Brand Name : Focusun

Ice Shape : cube ice

Voltage : 380v/50hz/3p

Power : 25 kw

Dimension(L*W*H) : Customize

Weight : 2200kg

Warranty : 15 Months

Key Selling Points : High Productivity

Ice storage capacity : others

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 3 years

Core Components : PLC, compressor

Name : Industrial 5 Ton Cube Ice Machine

Cooling way : Air Cooling

Type : Automatic Cube Ice Machine

After-sales Service Provided : Engineers available to service machinery overseas

Application : Freeze drinks in bars

Compressor : Bitzer

Material : Stainless Steel 304

Keyword : cube ice machine

Refrigerant : R404a or R22

Ice size : 28mm*28mm*22mm /22mm*22mm*22mm

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location : None

Showroom Location : None

Certification : CE

Marketing Type : Hot Product 2019

Packaging Details : standard wood packages and transport in container

Port : shanghai port

Supply Ability : 200 Set/Sets per Quarter

Price : $23,000.00/sets 1-1 sets

MOQ : 1pc

Contact Now

Product Title

Industrial 5 Ton Cube Ice Machine

About Focusun

Industrial Cube Ice Production Plant with 5 Ton Capacity and Automatic Operation

FOCUSUN---Cooling Technical Master Since 1929, Germany

Focusun is a pioneer in ice cooling techlonogy and manufacture worldwide. We mainly design and manufacture tube ice machine, block ice machine, flake ice machine, cube ice machine, plate ice machine, water chiller, concrete cooling system, automatic ice storage system, dynamic ice storage system and all kinds of cold rooms. Over a decade, we have provided quality service to more than 16,000 professional clients in 150 countries around the world. Now we have a factory of 36,000 square meter in Taizhou, Jiangsu province, China.

Focusun (shanghai) Refrigeration Equipment is founded in 2008. In fact, our activity in refrigeration technology is dated back to 2002. In 2012. Focusun(Shanghai) is authorized by Kulinder Incorporation(Germany) to deal with all business, D&M and promotion in China and granted the full right to use the brand of Kulinder, Focusun, pictures and the copyright of design &manufacture in China.

Product Description

In the term of capacity , the cub ice is divided into commercial and industrial categories. Industrial cube ice

machine generally has the capacity of more than 1 ton. So far, Focusun have developed 1 , 2, 3, 5, 10, and 20 ton of industrial cube ice machine. For example, the 5 ton for Dubai, the 10 ton for Yemen. As other ice machines of Focusun, Cube ice machine has excellent quality, long life time, and high cost efficient, becoming substantially popular all around world.

Model	Capacity/24 hours	Refrigerant	Operation Power	Installation Power	Dimention(Evaporator)
FIC-10	1 ton	R22/R404a	6.68KW	8KW	170012001700mm
FIC-20	2 ton	R22/R404a	9.95KW	12KW	220016002000mm
FIC-30	3 ton	R22/R404a	14.43KW	18KW	2200170022000mm
FIC-50	5 ton	R22/R404a	25.15KW	30KW	220018002200mm
FIC-80	8 ton	R22/R404a	29.30KW	35KW	220022002200mm
FIC-100	10 ton	R22/R404a	39.8KW	48KW	220026002200mm
FIC-200	20 ton	R22/R404a	84KW	100KW	380036002450mm

1. Structure is designed perfectly, space saving, convenient to install.

2. Save energy greatly, reduce the cost of water and power consumption.

3. Ice can drop automatically and evenly, no need other auxiliary fittings.

4. Automatic ice doffing, no need mannual grabing make sure the the ice is clean and sanitary.

5.Highly efficient, energy saving, safe and environmentally friendly and are quickly becoming the most popular choice for clients around the world.

Detailed Images

Name: Excellent Configutation
Brand: Schneider, Danfoss, Siemens
Germany Bitzer, Siemens PLC, Schneider electric, Danfoss valve etc all are famous suppliers.

Name: CUBE ICE EVAPORATOE
Brand: FOCUSUN

Focusun tube ice evaporator is manufacturing with aluminum alloy and stainless steel 304 and welded with the most sophisticated welding technology. it is durable and nice-looking and complied with the sanitary requirement.

Name: water cooling condenser

Brand: XUEMEI

Original: CHINA Best Brand

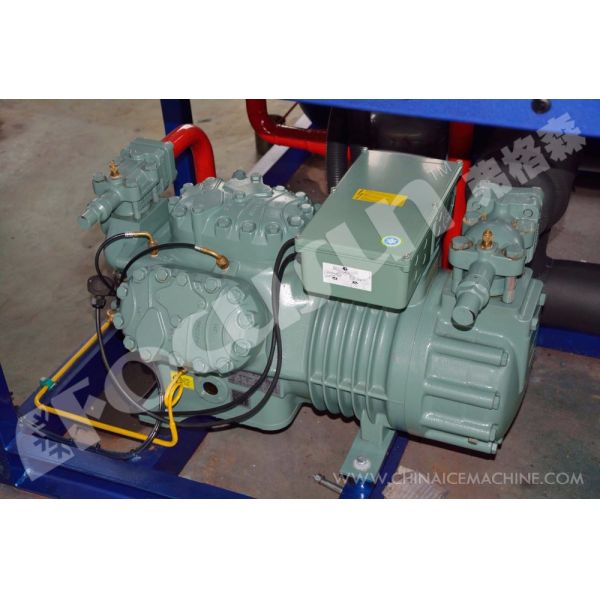

Name: compressor
Brand: BITZER
Bitzer compressor is champion in cold freezing industry, which can provide sufficient power to ensuring produce ice in shortest period with minimum energy v consumption.Germany Bitzer Piston compressor is best choice for the capacity 3 ton to 10 ton for ice making

Certifications

Packing & Delivery

Packaging
Size	3550×1550×2100mm
Weight	2.2 T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Shipping company
Company	Only choose reliable freight fowarder with good reputation
Person	Only work with fowarder agent with abundance of handlig export business
Logistic dept of Focusun	Professional Focusun logistic team ensures you 100% package safety of the machines

91.8% Response Rate

91.8% Response Rate

91.8% Response Rate

Our Service

Perfect after-sale service system

All FOCUSUN ice machine come out with 15 months warrenty.If the machine breaks down in 15 months, our company will send the parts for free, even send the engineer overseas to have a check and repair it if necessary.When beyond the warrenty, FOCUSUN will supply the parts only for factory cost.

please provide the copy of sales contact and describe the problems appeared

Problems confirmation

Slight problems

please send the proof to our after-sale department and we will reply in two work days

Serious problem

we will dispatch our quality and problems appraisers to make a confirmation

have a negotiation of compensation and sign agreements

our after-sale department will perform the duties as the agreement
