2200*2000*1800mm Tube Ice Machine for Freezing and Mixing Wines Stainless Steel 304

Applicable Industries : Food & Beverage Factory, Restaurant, Food Shop

Condition : New

Place of Origin : Jiangsu, China

Brand Name : FOCUSUN

Ice Shape : tube ice

Voltage : 380v/3p/50hz

Power : 85KW

Dimension(L*W*H) : 2200*2000*1800mm

Weight : 2260 KG

Warranty : 1.5 years

Key Selling Points : Automatic

Ice storage capacity : Other

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1.5 years

Core Components : Other

Compressor brand : Emerson, Other, Frascold, Xumei, Bitzer, Copeland, Fusheng

Application : Industrial, Cold Drinks

Compressor : Bitzer

Cooling way : water Cooling

Refrigerant : R22/R404A

Material : Stainless Steel 304

style : factory use

color : blue

After Warranty Service : Video technical support

Product name : Ice Cube Making Machine

Type : Automatic Ice Maker

Packaging Details : 1. Standard wooden case.
2. A complete tube ice maker contains: ice machine, cooling tower, water pump, water pipes and water pipe fittings.
3. Machine comes into use, customer only need prepare power for the machine.
4. All required compone

Supply Ability : 100 Set/Sets per Quarter

Price : $68,880.00/units >=1 units

MOQ : 1pc

Contact Now

PRODUCT OVERVIEW

Focusun Automatic Tube Ice Machine

Focusun is proud of inventing the first tube ice machine in the world. Over 80 years of manufacturing experience strengthens its advanced ice making technology.

Features: Tube ice is thick and transparent with long storage period. It isn't likely to melt in a short time.
FEATURES AT A GLANCE
2200*2000*1800mm Tube Ice Machine for Freezing and Mixing Wines Stainless Steel 304
Tube Ice Making Process
Tube ice is formed in a vertical shell-and-tube vessel by water passing down inside the tubes which are cooled by the circulation of refrigerant on the outer surface.

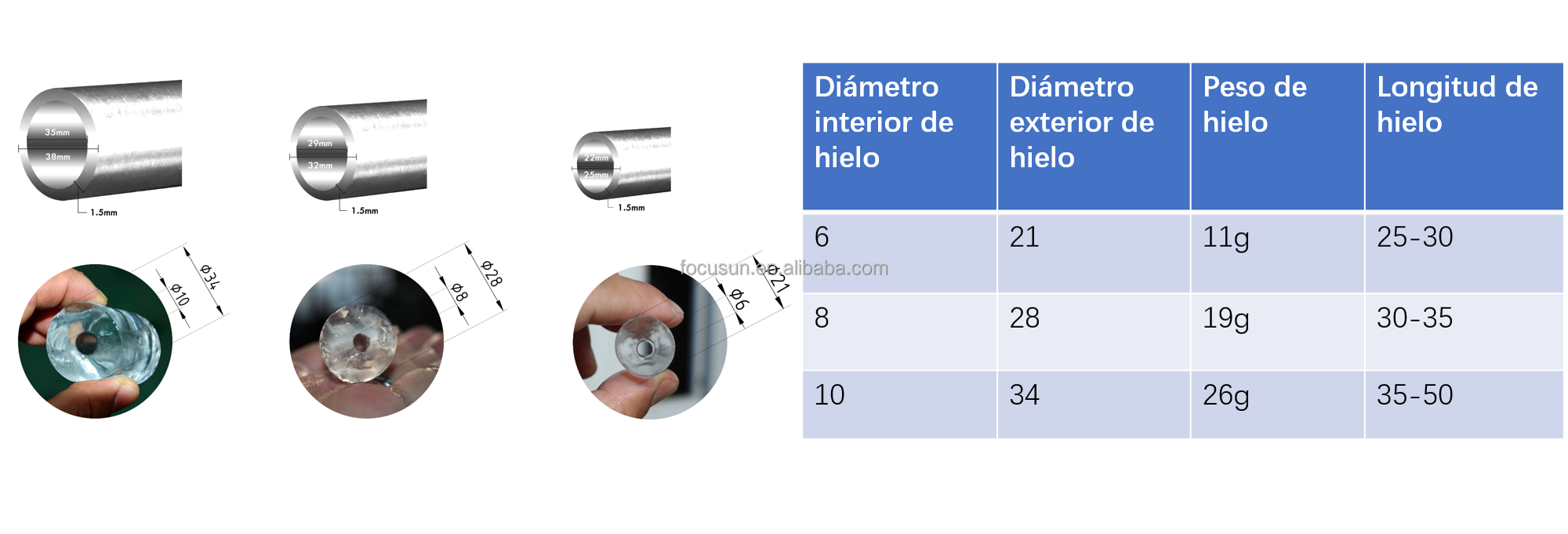

As the ice falls from the tubes it is cut by the rotating ice cutter to a desired size.The ice tubes are about 50 mm in length and 21,28,34mm three options in external diameter.
When the ice reaches the desired thickness,the water flow will stop automatically.The refrigerant is removed to a surge drum and hot gas is circulated around the tubes causing the ice tubes to melt and slide down.
PRODUCT SPECIFICATIONS
No
Item
Data
1
Operating Power
3.5kw
2
Installation Power
5.0kw
3
Condenser Capacity
11kw
4
Operating Weight
0.6MT
5
Equipment Size
1320x900x1830(LxWxH mm)
6
Refrigerant
R404a/R22
7
Transformer
10KVA
8
Generator
15KVA
OUR COMPANY
2200*2000*1800mm Tube Ice Machine for Freezing and Mixing Wines Stainless Steel 304
FOCUSUN---Cooling Technical Master Since 1929, Germany
As one of the most professional ice machine manufacturers in the world, Focusun always develops high refrigeration technology with innovation. Our R&D center is located in Jiangsu Province, China, with more than 35,000 square meters of standardized modern factory and advanced product testing platform. We mainly design and manufacture tube ice machine, block ice machine, flake ice machine, cube ice machine, plate ice machine, water chiller, concrete cooling system, automatic ice storage system, dynamic ice storage system and all kinds of cold rooms. Over a decade, we have provided quality service to more than 16,000 professional clients in 88 countries around the world.
