Condition 2024 Focusun 7 Ton Air Flake Ice Making Machine with Low Voltage Components

Scale Ice Machine/Flake Ice Machine
The multiple applications of this type of ice from the industry to the hotel industry, with any configuration: compact machine. Remote group or connected to central cold.
Acquiring a flake ice machine benefits from the support of the best team of ice experts: It is a machine designed to make 100% ice water.
This product on the inside of the evaporator, vertical cylindrical. Made of steel, with an internal labyrinth for the circulation of the refrigerant. Which is isolated to avoid loss of performance of the machine. The inner face is nickel-plated, and has an outer stainless steel jacket.

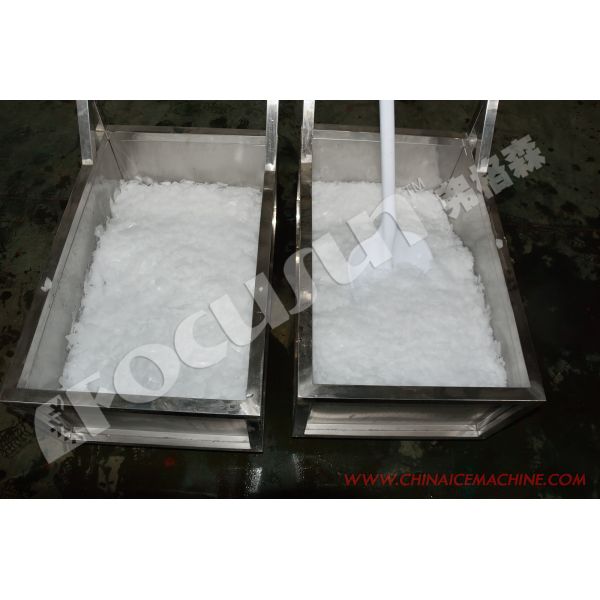

Scale ice is usually large, flat, thin pieces of ice (1-2 mm) mainly used in the commercial fishing and concrete cooling industries, typically in large quantities.
Made on a large vertical or horizontal drums, scale ice is formed on either the inner or outer surface of the drum by pouring a film of water over it, then contact freezing it into a thin sheet of ice. This ice is sub-cooled down to -7°C in order to make it brittle, then cracked off by a harvesting blade. The ice then falls by gravity into the ice store. These large, flat pieces are good for layering, and are available with a single evaporator up to 50 tonnes.
The vertical style of drum is usually stationary, with the ice formed on the inner surface. The harvesting blade is motor driven around this surface, cracking it off. The horizontal style of drum is usually rotating, with the ice formed on the outer surface. As the drum rotates, a stationary blade cracks the ice from the surface

Power Configuration: Standard power is 380V/3P/ 50Hz. The electrical system can be adjusted according to actual situation and should be confirmed when ordering.

Unit Configuration: Copeland ful-hermetic piston compressor and air-cooling condenser;

Once provided water and power in scene, the flake ice maker can be put into operation immediately.

Refrigerant Configuration: New type of environmental friendly refrigerant R404A;

Ice Storage Configuration: Each ice flake maker is equipped with stainless steel ice storage with certain capacity.

FOCUSUN---Cooling Technical Master Since 1929, Germany

Focusun is a pioneer in ice cooling techlonogy and manufacture worldwide. We mainly design and manufacture tube ice machine, block ice machine, flake ice machine, cube ice machine, plate ice machine, water chiller, concrete cooling system, automatic ice storage system, dynamic ice storage system and all kinds of cold rooms. Over a decade, we have provided quality service to more than 16,000 professional clients in 150 countries around the world. Now we have a factory of 36,000 square meter in Taizhou, Jiangsu province, China.

Focusun (shanghai) Refrigeration Equipment is founded in 2008. In fact, our activity in refrigeration technology is dated back to 2002. In 2012. Focusun(Shanghai) is authorized by Kulinder Incorporation(Germany) to deal with all business, D&M and promotion in China and granted the full right to use the brand of Kulinder, Focusun, pictures and the copyright of design &manufacture in China.

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
