5000 KG Flake Ice Machine for Fresh/Seawater Cooling within Air and Water

Name: 5000 KG Flake Ice Machine for FreshSeawater Cooling within Air and Water
Brand: Focusun
Price: 32 USD

Wholesale 5000 KG Flake Ice Machine for Fresh/Seawater Cooling within Air and Water from china suppliers

Applicable Industries : Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Construction works , Food & Beverage Shops, Other

Condition : New

Place of Origin : Jiangsu, China

Brand Name : Focusun

Ice Shape : Flake Ice

Voltage : 220v~380v

Power : 100kw

Dimension(L*W*H) : 5700*2500*2200mm

Weight : 5000 KG

Warranty : 1.5 years, 15months

Key Selling Points : Competitive Price

Ice storage capacity : Other, 10T

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 3 years

Core Components : PLC, Other, Gear, Condenser, Compressor, Evaporator

Compressor brand : Refcomp

Application : Industrial

shape : Flake Ice

Power supply : 220v-440v

Cooling way : Air Cooling/Water Cooling

Compressor : Refcomp/Bitzer

Type : Automatic Flake Ice Machine

Refrigerant : R404a/R22

Material : Stainless Steel 304

Capacity : 10t

Keyword : flakeice

Marketing Type : New Product

Packaging Details : container

Port : Shanghai port

Supply Ability : 200 Case/Cases per Quarter

Price : $32,888.00/cases >=1 cases

MOQ : 1pc

Contact Now

Product Description

Product Application

Irregular ice flakes with size about 40*40mm and thickness around 1.5-2.5mm.The thin ice can be directly used for stirring and mixing refrigerated materials.No acute edges and corners so it will not damage the surface of the cooled object.Large contact area and fast cooling speed,easy to crush and mold.

5000 KG Flake Ice Machine for Fresh/Seawater Cooling within Air and Water

Main Features

1)Internally-scraping ice skate can help reduce energy consumption and prevent leakage of refrigerant.
2)Stainless steel materials, advanced processing equipment and heat treatment processing ensure the best heat transfer efficiency.
3)The design of large water receiving plate can prevent water leaking at the bottom of evaporator.
4)Photoelectric switch is directly installed at the bottom of evaporator to realize automatic control of full ice.
5)Direct liquid feeding and dry evaporation, simple&safe to control.
6)Integrated modular design, convenient to install and maintain.

Machine Specifications

Daily Capacity（ton per 24hours）	Cooling Method	Refrigerant	Power Consumption	Operating Weight（kg)
5T	Air/Water	R404A/R22/R134A	75kw.h per ton	1550
10T	Air/Water	R404A/R22/R134A	75kw.h per ton	3280
15T	Air/Water	R404A/R22/R134A	75kw.h per ton	4330
20T	Air/Water	R404A/R22/R134A	75kw.h per ton	6130

Detailed Images

Machine Parts

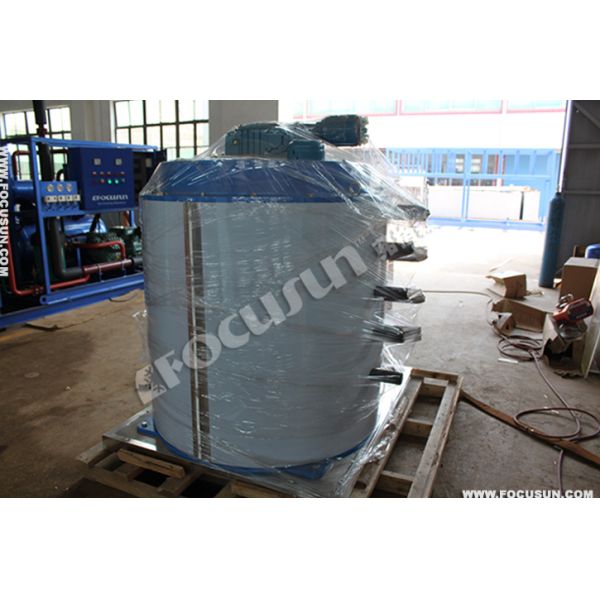

Name: Flake ice evaporator

The internal structure of the evaporator is specially designed to improve the heat-exchange efficiency and to keep the loop unblocked with special processing technology. The internally-scraping ice-making mode has been adopted, which reduces the loss of energy and avoids the leakage of refrigerant

Machine Features

To improve the use ratio of the storage and to avoid ice freezing in the bottom. Focusun provides automatic ice storage system which make the cold air in it cycle though it is filled with ice, so as to maintain the temperature at-8℃.

Ice Application

Flake ice is used in concrete mixing, chemical and dye industries, artificial ice snow engineering and artificial skiing field application, dairy production, poultry processing, fruit and vegetable preservation, aquatic processing, meat processing, supermarket preservation.

Standard working condition

Dry bulb temperature is 33 celuis and water inlet temperature is 20 celuis. The above mentioned parameter will be changed subject to technical innovation without further notic.

Recommend Products

Certifications

Packing & Delivery

PACKING DETAILS

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

About Focusun

FOCUSUN is a pioneer in the fields of ice making and vacuum pre-cooling. We specialized in designing and manufacturing all kinds of high quality ice machines and cooling systems. With the technology and experience accumulated over the years, we use advanced technology of refrigeration and mechanical transmisson to provide quality service to more than 11,000 professional clients in 56 countries around the world.
